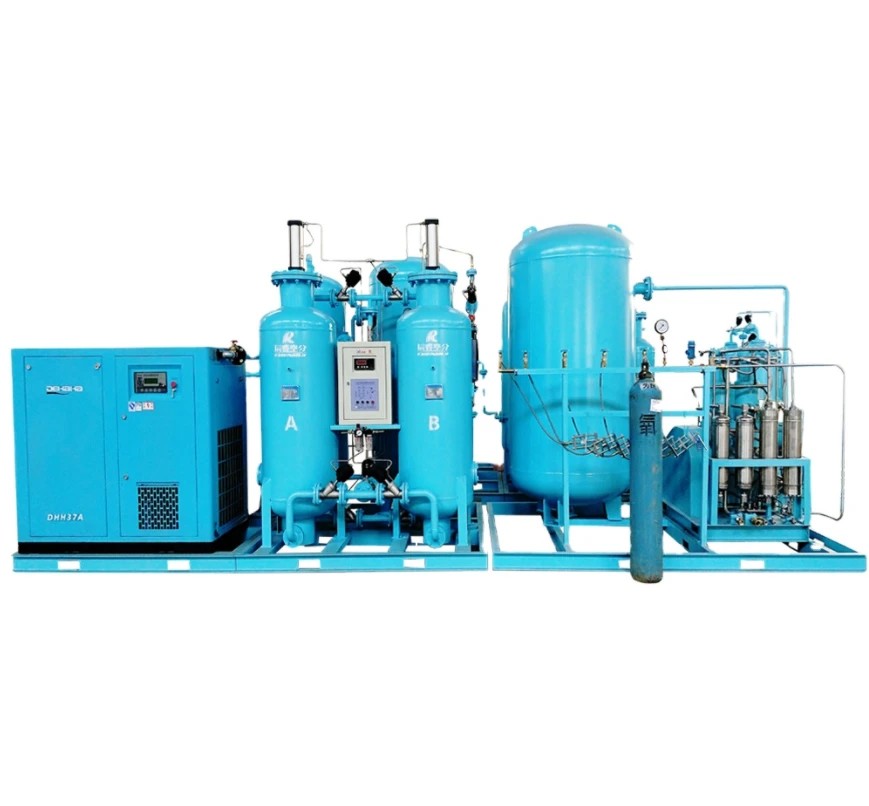

93% Oxygen Purity PSA Oxygen Generation System
93% Oxygen Purity PSA Oxygen Generation System
93% Oxygen Purity PSA Oxygen Generation System
93% Oxygen Purity PSA Oxygen Generation System
93% Oxygen Purity PSA Oxygen Generation System

93% Oxygen Purity PSA Oxygen Generation System

Description Purity: 93%, flow rate: 50m3 / h pressure:15MPa Automatic filling systemEquipment Flow Chart&

Contact Us To Purchase

Description

 Purity:≥ 93%, flow rate: 50m3 / h
 pressure:15MPa Automatic filling system

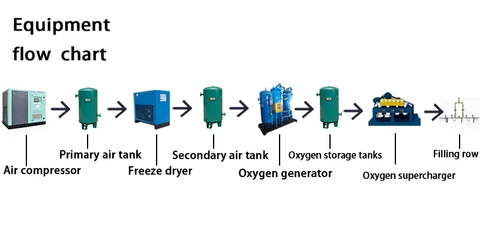

Equipment Flow Chart

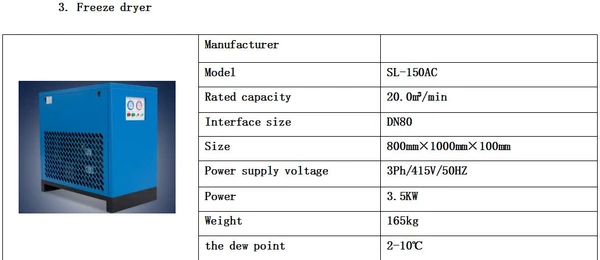

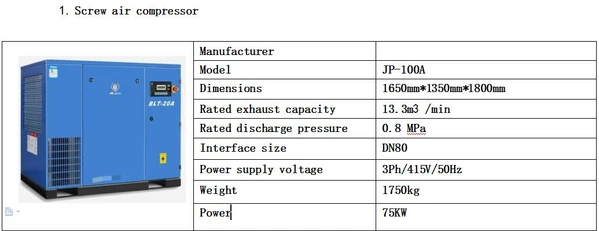

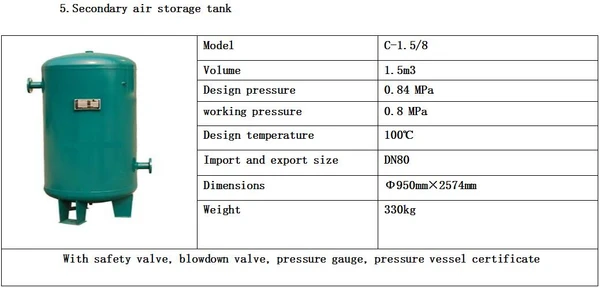

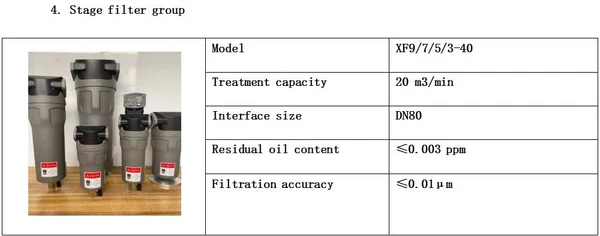

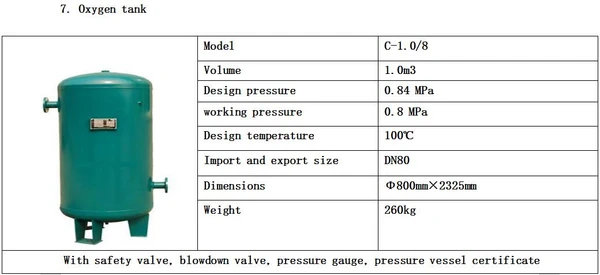

Technical Parameters of Monomer

93% Oxygen Purity PSA Oxygen Generation System(图3)

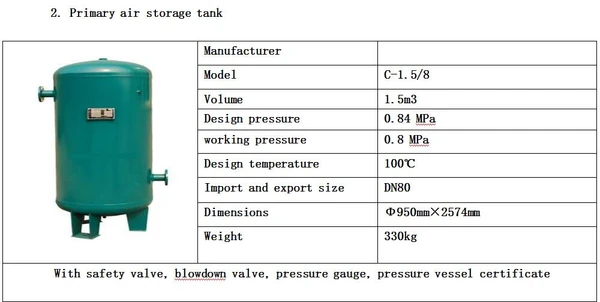

93% Oxygen Purity PSA Oxygen Generation System(图4)

93% Oxygen Purity PSA Oxygen Generation System(图5)

93% Oxygen Purity PSA Oxygen Generation System(图6)

93% Oxygen Purity PSA Oxygen Generation System(图7)

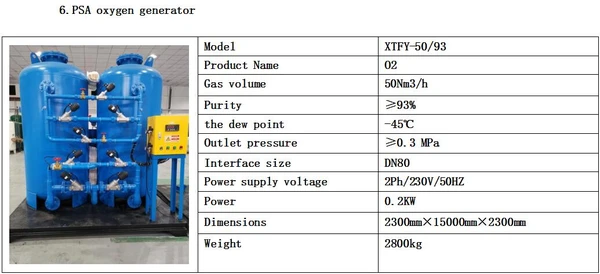

93% Oxygen Purity PSA Oxygen Generation System(图8)

93% Oxygen Purity PSA Oxygen Generation System(图9)

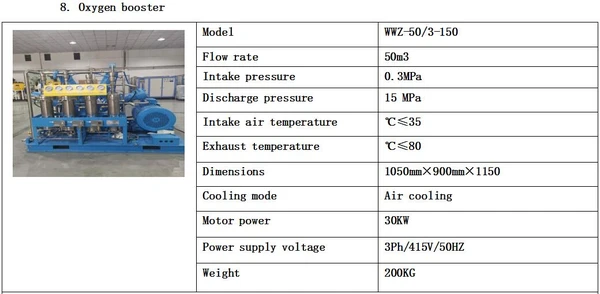

93% Oxygen Purity PSA Oxygen Generation System(图10)

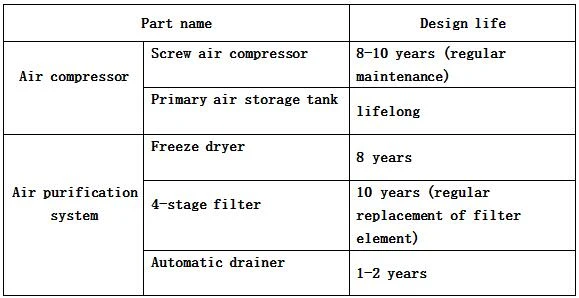

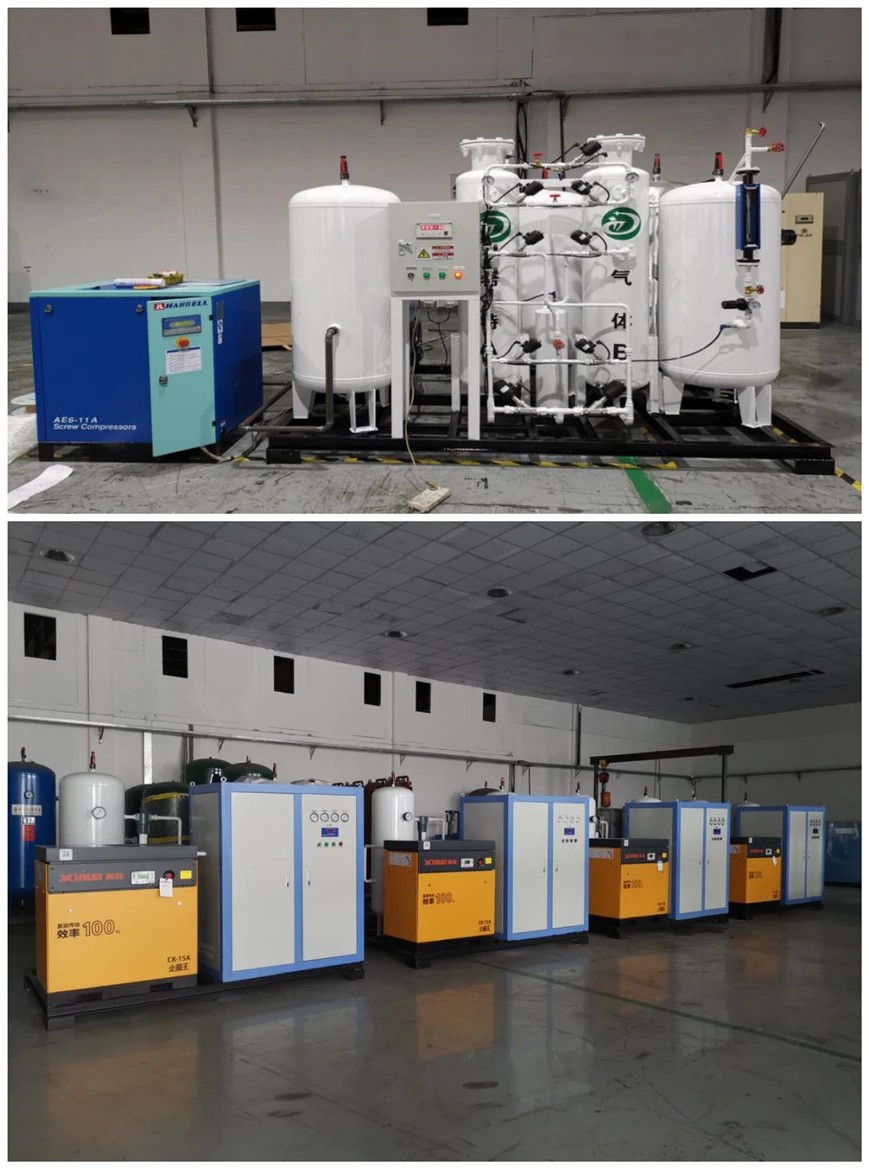

Supply Content



93% Oxygen Purity PSA Oxygen Generation System(图11)

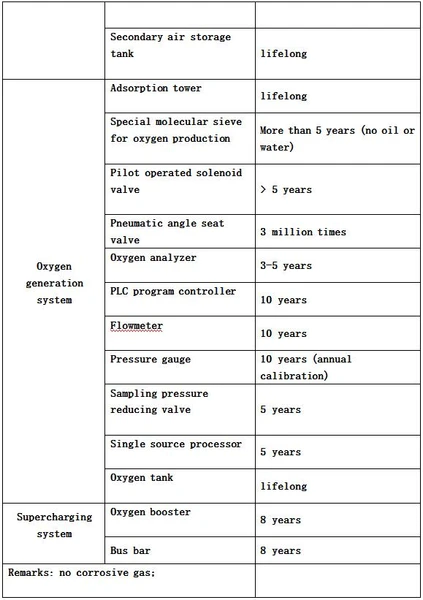

93% Oxygen Purity PSA Oxygen Generation System(图12)

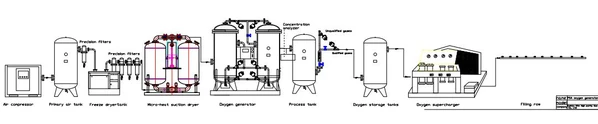

 Process flow chart of Oxygen Generator
