Technical Specification:

Ventilation Modes: VCV(A/C), PCVIA/C), PRVC, SIM(VCV)+PSV, SIMV(PCV)+PSV, SIMV(PRVC)+PSV, SPONT/CPAP+PSV, BIVENT+PSV, NIV/CPAP, NIV-T, NIV-S/T
Parameters:
* Tidal Volume: 20~2000 ml
* Respiration Rate: 1~80 bpm
* Tinsp: 0.2~9 s
* Tslope: 0~2 s
* Tpause: 0~4 s
* I:E Ratio: 1:10~4:1
* FiO₂: 21%-100%
* Trigger Sensitivity: Pressure(-20~0cmH₂O, above PEEP), Flow (0.5-20 LPM)
* PEEP: 0~35cmH₂O
* Psupport: 0~70cmH₂O
* Pinsp: 5~70cmH₂O
Special Procedures:
Apnea Ventilation, Smart Suction, Manual Breath, Insp/ Exp Hold, ETCO₂ Measurement,  Nebulization, Waveform Freeze
Monitoring:
* Pressure Value: Ppeak, Pplat, Pmean, Pmin, PEEP
* Volume/ Flow Value: Vti,Vte,MV,MVspont
* Time Value: ftotal, fspont, I:E
* Real Time Curves: a. Pressure-Time, FowTime, Volume-Time waveforms; b. Pressure-Volume, Volume-Flow, Flow-Pressure loops
* Gas Monitoring: FiO₂, ETCO₂
* Calculated Values: Compliance(C), Resistance(R), MVleak, RSBI, WOB, PEEPi
Alarm:

Paw high / low   MVe high / low   Circuit disconnnect

FiO₂ high / low   Inspiration / Expiratory tidal volume low

High Respiration Rate   Apnea   AC Failure   Nebulizer On

Low Battery   Air /O₂ supply down  High / Low PEEP

Leakage out of range   Occlusion

Technical Data:

* Screen: 12〞TFT color touch screen (detachable)

* Supply Gas: O₂, 0.28-0.6 MPa

* Power Supply: AC100~240 V, 50 Hz/60 Hz

* Communication Interface: RS-232 Port, Nurse call Port, Ethernet Port

* Dimension (WxDxH): 322 mm x 375 mm x 366 mm (Main Unit), 547 mm x 675 mm x 950 mm (Cart),

* Weight: 12.5 kg (Main Unit), 25 kg (Cart)

Remark: Above confifigurations include standard and optional.

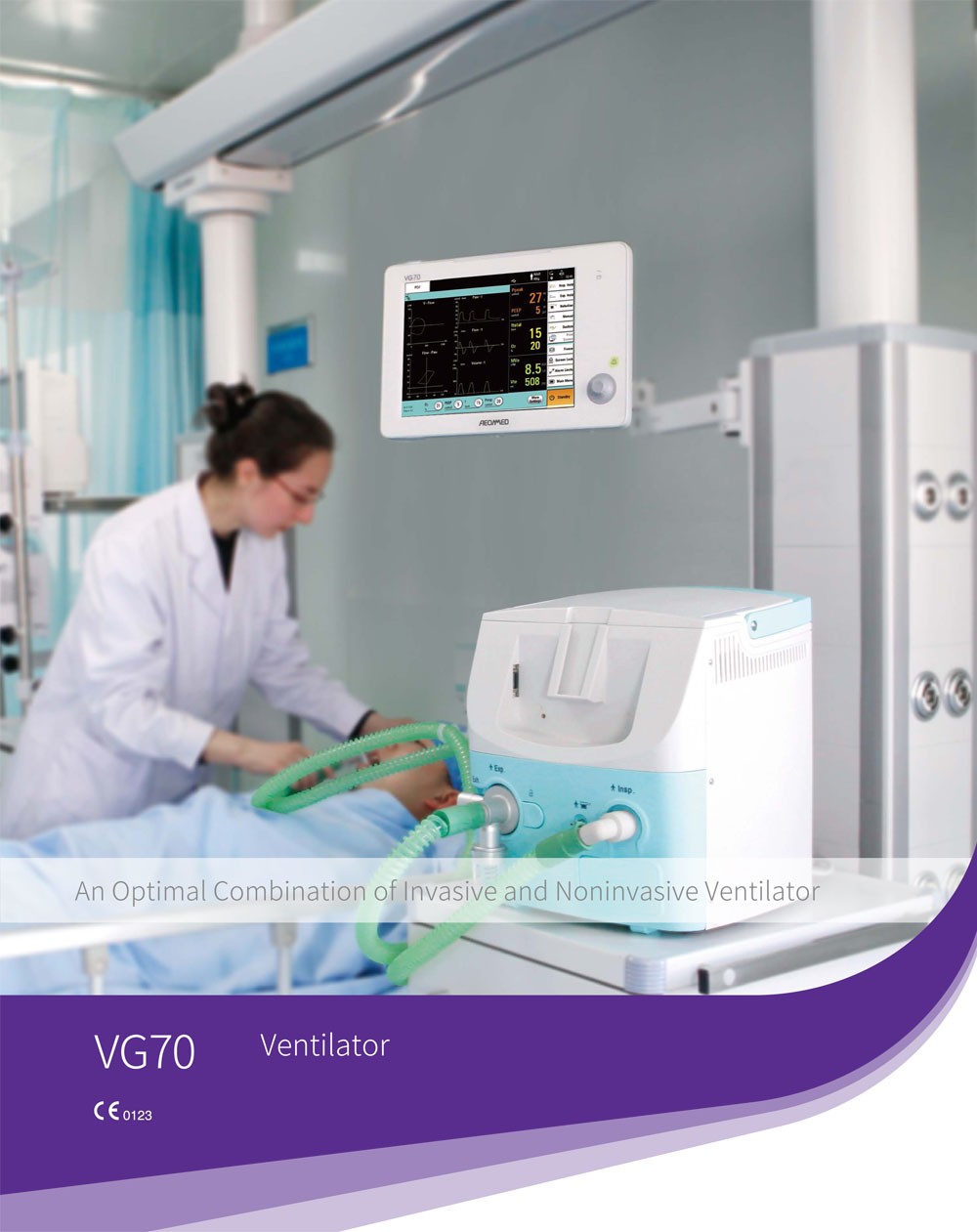

Superior Mobile ICU ventilator:

• Comprehensive ICU ventilator including BIVENT and PRVC


• Compact, big capacity battery, no air compressor, intra-hospital mobility

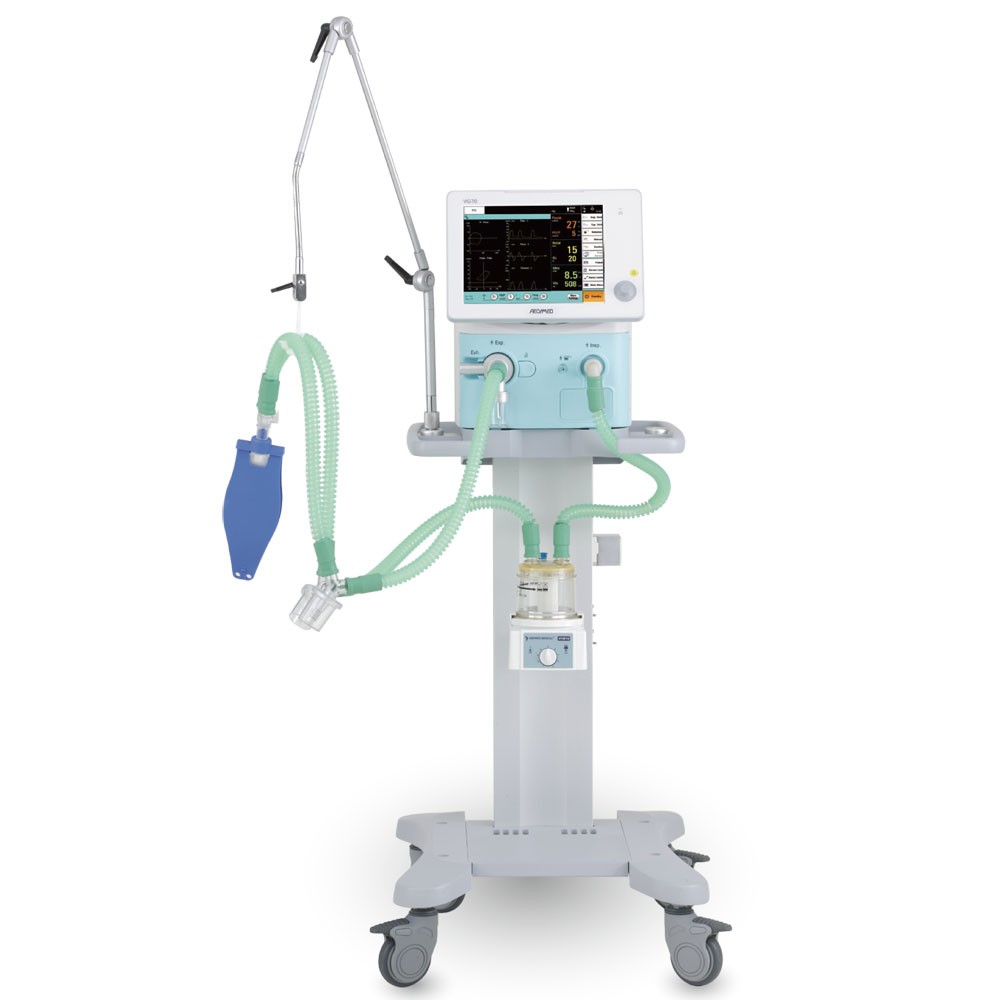

• Flexible device confifiguration: equipped on a trolley, bed or ceiling pendant

Cost Effective Solution:

• Unique metal-based, autoclavable, heated exhalation valve


• Built-in flow sensor, non-consumable design


• Upgradeable ventilation system software, with an available USB port

Safe Ventilation Through Whole Treatment Phase

Initial Treatment Phase

* Noninvasive ventilation mode associated with decreased intubation rates, shortened patient stays, improved patient comfort, and a reduced risk of cross infection

* Preset patient’s height and IBW. Reduce clinician’s workload

Stable Condition Phase

* PRVC and BIVENT employ lung-protective strategies, delivering intelligent ventilation

* Comprehensive lung mechanics monitoring include compliance, air way resistance,

PEEPi and time constant

* Three waveforms & three loops with user-friendly display provide a continuous monitoring of the patient’s condition

Weaning Phase:

• Various ventilation modes enhance the weaning process

• The unique trigger and leakage compensation system safeguards each and every patient breath resulting in smooth and comfortable breathing, avoiding extra workload on the patient and promoting recovery

• RSBI and WOB provide accurate reference for weaning

Rehab Phase:

• Data export port provides connection to hospital monitors and Patient Data Management Systems

• Provides pressure support for the patient when spontaneous breathing is present
